From Breas

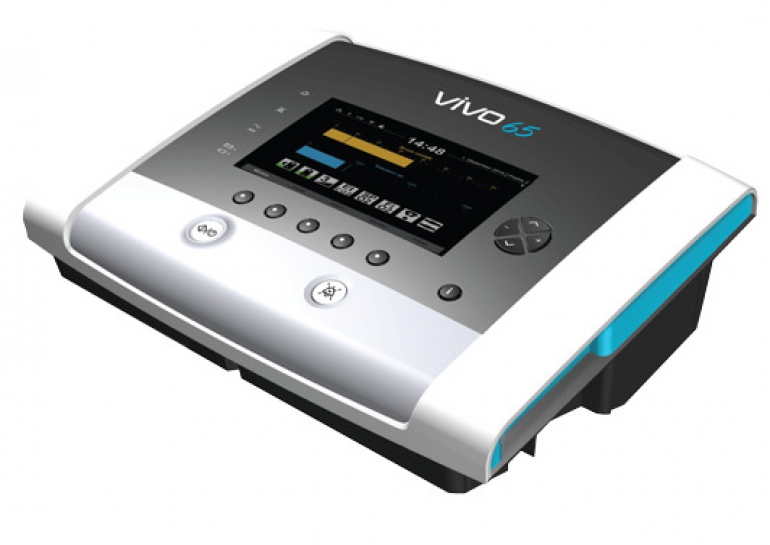

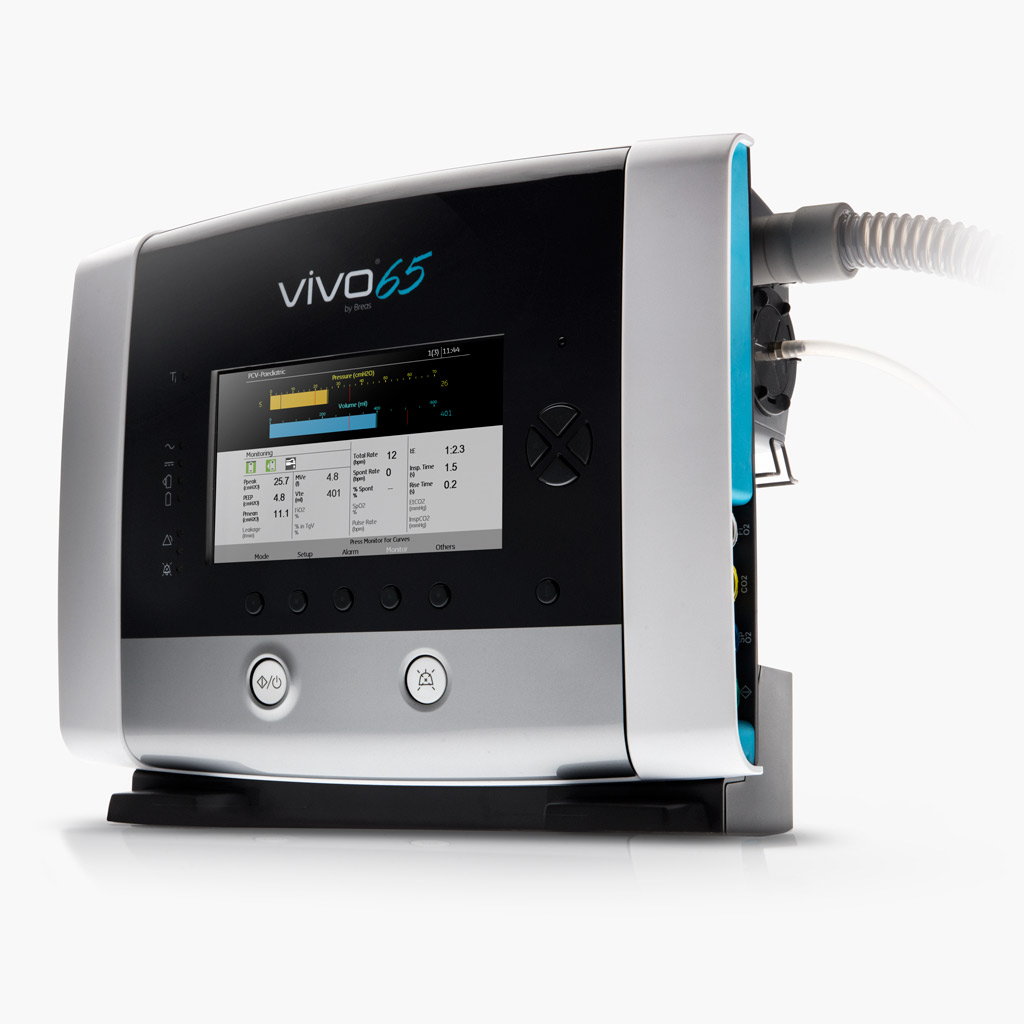

The Vivo 65 is designed to meet the needs both of medical staff and a wide range of patients. It combines comfortable and controllable ventilation with excellent monitoring capabilities to potentially reduce re-admissions to acute care facilities. It is an advanced homecare ventilator designed to deliver secure and comfortable (life-support) treatment to adult and pediatric patients from 5 kg. The Vivo 65 can be used for a wide variety of patients thanks to a comprehensive set of modes, circuits and accessories.
Dual Limb Circuit & Extensive Monitoring Capabilities
The dual limb circuit allows for the measurement of exhaled volumes providing additional security. The extensive monitoring capabilities help obtain a better insight into the quality of ventilation. The Vivo 65 is an excellent choice for mechanical ventilation at home, in the hospital and in long-term care facilities. The Vivo 65 is prepared for connection to Breas cloud solutions.
- Integrated monitoring of SpO2, CO2 and FiO2
- Real-time values and curves on the device
- Comprehensive alarms
- PC software for detailed analysis and reporting
- 12-hour autonomy with the 4-hour internal battery plus the 8-hour click-on battery
Ideal Choice for Treatment of Children
Vivo 65 is an ideal choice for the treatment of children (> 11 lbs / 5 kg) thanks to its accurate volume delivery and highly responsive trigger system. With its intuitive user interface, the Vivo 65 is easy-to-use and easy-to-teach.
Adaptable to Patients’ Needs and Prescriber Preferences
This is suitable for a wide range of pathologies and for patients with changing requirements over time.
- Multiple circuits - dual limb with exhaled volume measurements, single limb with exhalation valve or leakage port
- Invasive and non-invasive ventilation
- Multiple modes – Pressure and Volume Modes with Target Volume and SIMV
Easy-to-Use Thanks to Intuitive User Interface
The Vivo 65 features a simple menu structure and is both easy to use and easy to teach!
- User-friendly color interface
- Easy to teach, easy to learn, reducing risk for mistakes
- Extensive analysis and detailed reports in the PC software
Specifications
| Patient Modes | Adult, Pediatric |
| Device Modes | Home, Clinical |
| Inspiratory Pressure | 4 to 60 cmH2O |
| PEEP | Off, 2 cmH2O to 30 cmH2O |
| Breath Rate (PCV, VCV, MPV, SIMV) | 4 – 60 bpm, 0 – 60 bpm in MPV mode |
| Inspiratory Time | 0.3 to 5 s |
| Backup Inspiratory Time | 0.3 to 5 s (PSV) |
| Rise Time | 1 to 9 (PSV & PCV) 50 – 90%, Off (VCV) |
| Inspiratory Trigger | 1 to 9 (PSV, PCV & VCV), Off (PCV & VCV) |
| Expiratory Trigger | 1 to 9 (PSV) |
| Minimum Inspiratory Time | Off, 0.3 to 3 s |
| Maximum Inspiratory Time | 0.3 to 3 s, Off |
| Target Volume | 50 – 2500 ml |
| Tidal Volume | 50 – 2500 ml |
| Flow Pattern | Square, decelerating |
| Sigh Function | On/Off, rate (every 50-100-150-200-250 breaths) |
| Waveforms | Pressure, Flow, Volume, CO2 |
| Trends Over 1, 6, 24 and 48 h | Peak, PEEP, Total rate, Spont rate, Vt, Leakage |
| Trends Over 1, 6, 24 and 48 h | SpO2, EtCO2 |
| Power Supply | 100 to 240 V AC |
| DC Power | 24 V DC |
| Click-on Battery | 8 hours |
| Internal Battery | 4 hours |
| Dimensions | 343 × 125 × 264 mm |
| Weight | 5.4 kg |
| Noise Level | Less than 30 dB(A) |
- High performance and clinical excellence
- Excellent trigger and highly accurate volume measurement technology
- Extensive set of modes, including Pressure and Volume Modes, SIMV
- Variety of patient circuits: Single limb w/leakage or exhalation valve and dual limb for measurement of exhaled volume
- Extensive alarms
- Three profiles to quickly adjust the settings to the needs of the patient
- Simple menu structure
- i-Button for guidance and explanations
- Connectivity to PC Software - Allows monitoring of up to 10 Vivo 65 ventilators simultaneously
- Real-time monitoring and clear indication of alarms
- Waveforms and loops for in-depth analysis of treatment
- 365-day storage of data
- Facilitates workflows and timely intervention
- Integrated monitoring of SpO2, FiO2 & CO2 helps reduce need for external monitoring devices, reduces cost
- Numerical values and waveforms on the screen, multiple alarms
- CO2 monitoring is quick, easy to use and doesn't require calibration
